Nissan Armada 2025-2026 Service and Repair Manual: Protector and Equipment
(1) DUSTPROOF RESPIRATOR
This is an important protector to prevent workers from inhaling dust.
The cup type, gauze type, and other types of respirators are available.
The respirators with the deodorizing function which utilizes activated carbons, or with the exhaust valve to release air can be selected.
In order to maximize the respirator performance, be sure to cover your nose and mouth.
Do not use the respirator whose useful life has expired. This is because the function of the respirator has been deteriorated.
(2) DUSTPROOF GOGGLES
Dustproof goggles prevent dust from entering workers' eyes.
Goggles which can be worn on top of ordinary eyeglasses are also available.
(3) DUST COLLECTOR

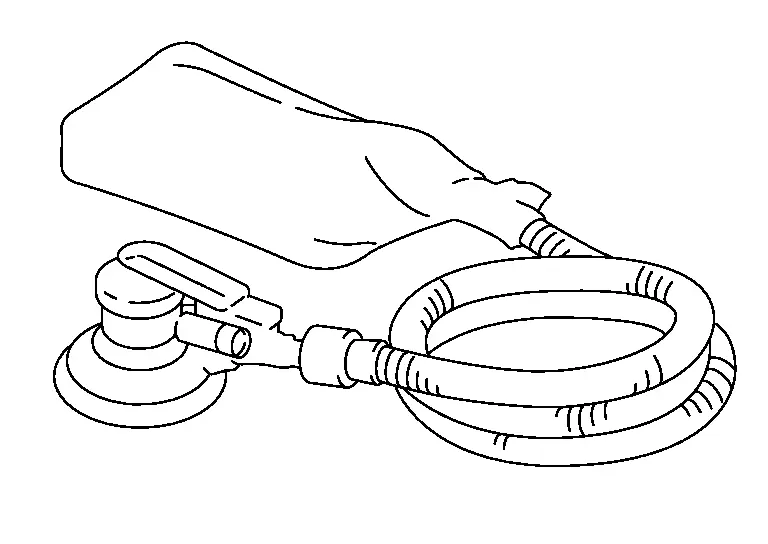

| Dustproof sander equipped with dust collecting bag | Dustproof sander hose connected to the industrial cleaner |
|
|

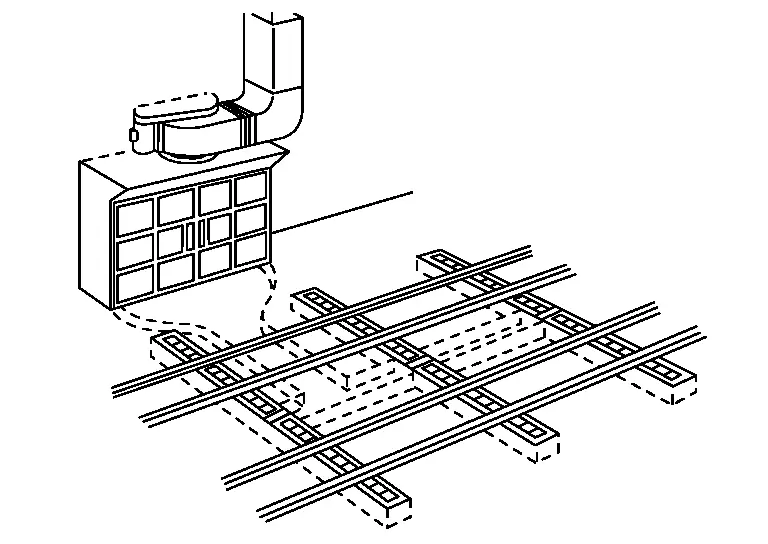

| Dust collector installed on the floor or the wall |
|
|
|
Precautions during Dust Generating Work
Workers must use a sander equipped with a dust collecting function.
Workers must work in the facilities where a dust collector is installed on the floor or the wall.
...
Precautions during Air Blow
Workers must wear dustproof goggles and dustproof respirators, even during cleaning work after grinding.
Adjust the pressure for air blow duster gun to prevent dust from being scattered all over the p ...
Other materials:
Removal and Installation
REMOVAL
Remove back door finisher. Refer to Removal and Installation.
Disconnect license plate lamp harness connectors.
Remove back door opener switch assembly fixing pawls using a remover tool (A), and then remove back door opener switch .
: Pawl
INSTALLATION
Install in the reverse order of re ...
Inspection
WARNING:
COMPONENT PART
Check the front suspension for the following:
Check each component for looseness or play.
Inspect each component for abnormal wear or damage.
Ball Joint Axial End Play
WARNING:
When moving the front tires up and down by hand, place a jack (A) at the rear floor jack lift poin ...
Inspection
WARNING:
LOOSENESS OF CONNECTED PART
Check each fixing bolt and nut for looseness using torque wrench. For each tightening torque, refer to Exploded View.
BACKLASH OF JOINT PART
BACKLASH OF CENTER BEARING
Move the shaft near center bearing up and down and from side to side (axial direction of shaft ...
