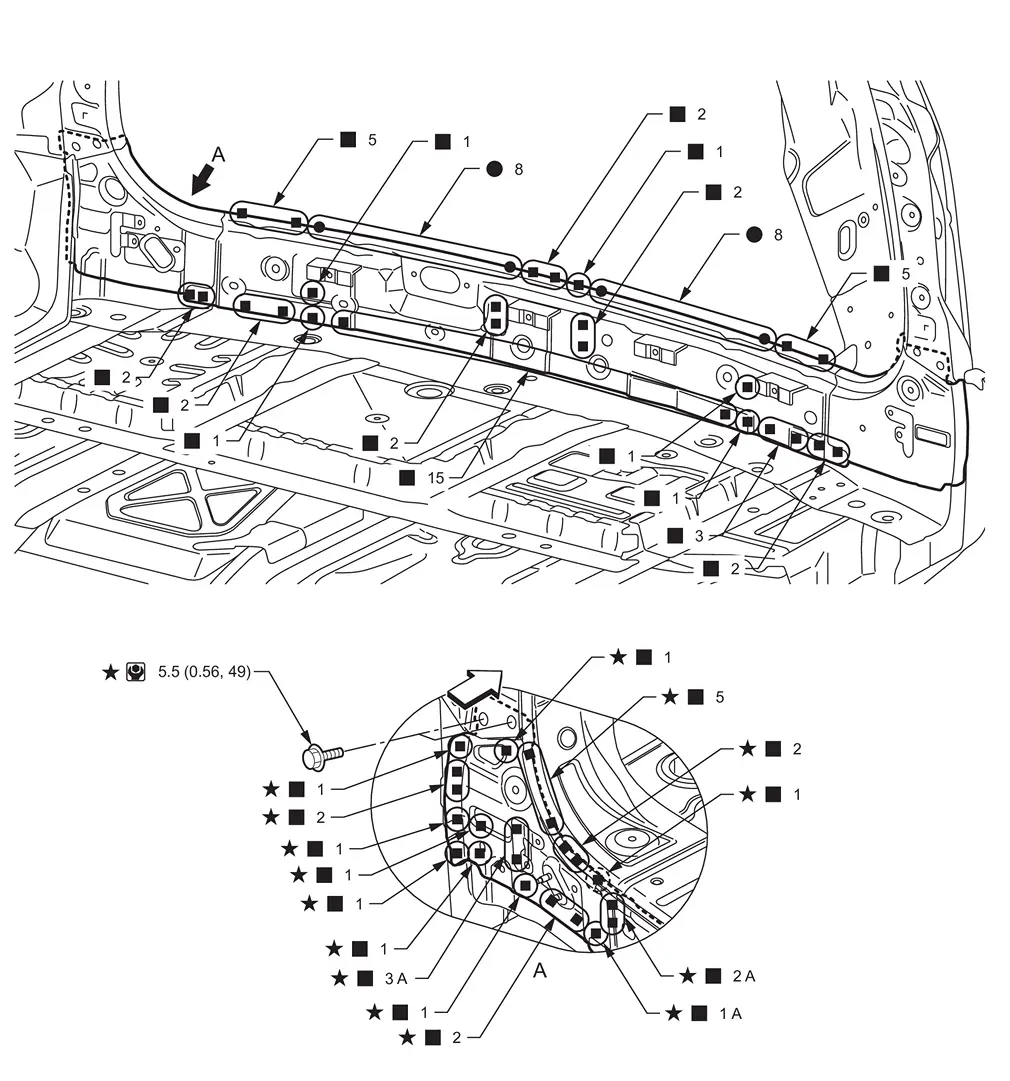

Nissan Armada 2025-2026 Service and Repair Manual: Rear Panel
WARNING:
 : Vehicle front | |||||
 : Weld the parts onto the back of the component part. | |||||
 : Welding method, the number of welding points, and the tightening torque apply to both sides of the vehicle. | |||||
 : N•m (kg-m, in-lb) | |||||
| Replacement part | |||||
| • | Rear end crossmember assembly | ||||
Back Pillar Reinforcement
WARNING:
Work after rear fender is removed.
Urethane foam Unit: mm (in) : Vehicle front Replacement part • Back pillar reinforcement
Urethane foam : Vehicle front : N•m (kg-m, in-lb) ...
Rear End Crossmember
WARNING:
Urethane foam Unit: mm (in) : Vehicle front : Welding method, the number of welding points, and the distance in the figure apply to both sides of the vehicle. : Urethane foam portion apply ...
