Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL
Remove the drain plug to drain the transfer fluid. Refer to Draining.
Remove the rear propeller shaft. Refer to Removal and Installation.
Remove main muffler. Refer to EXHAUST SYSTEM : Removal & Installation.

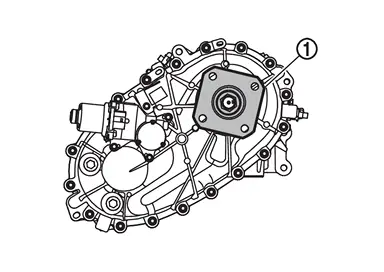

Remove the rear companion flange
and remove the o-ring.
Remove the rear oil seal.
CAUTION:
Never damage rear case and output shaft.
INSTALLATION

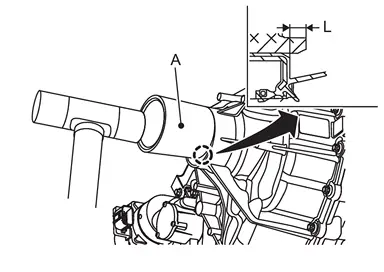

Install rear oil seal with a drift (A) (commercial service tool) within the dimension (L) shown as follows.
| L | : 3.45 – 4.55 mm (0.1358 – 0.1791 in) |
CAUTION:
Never reuse rear oil seal.
Apply transfer fluid onto circumference of oil seal.
When installing, never incline rear oil seal.
Never handle the oil seal inner periphery and oil seal lip.
Install the o-ring and install the rear companion flange .
Install the rear propeller shaft. Refer to Removal and Installation.
Fill with new transfer fluid. Refer to Refilling.
Exploded View
O-ring Rear companion flange Rear oil seal Transfer assembly : N·m (kg-m, ft-lb) : Always replace after every disassembly. : Apply transfer fluid. ...
Inspection
INSPECTION AFTER INSTALLATION
Check fluid leakage and the fluid level. Refer to Inspection. ...
