Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

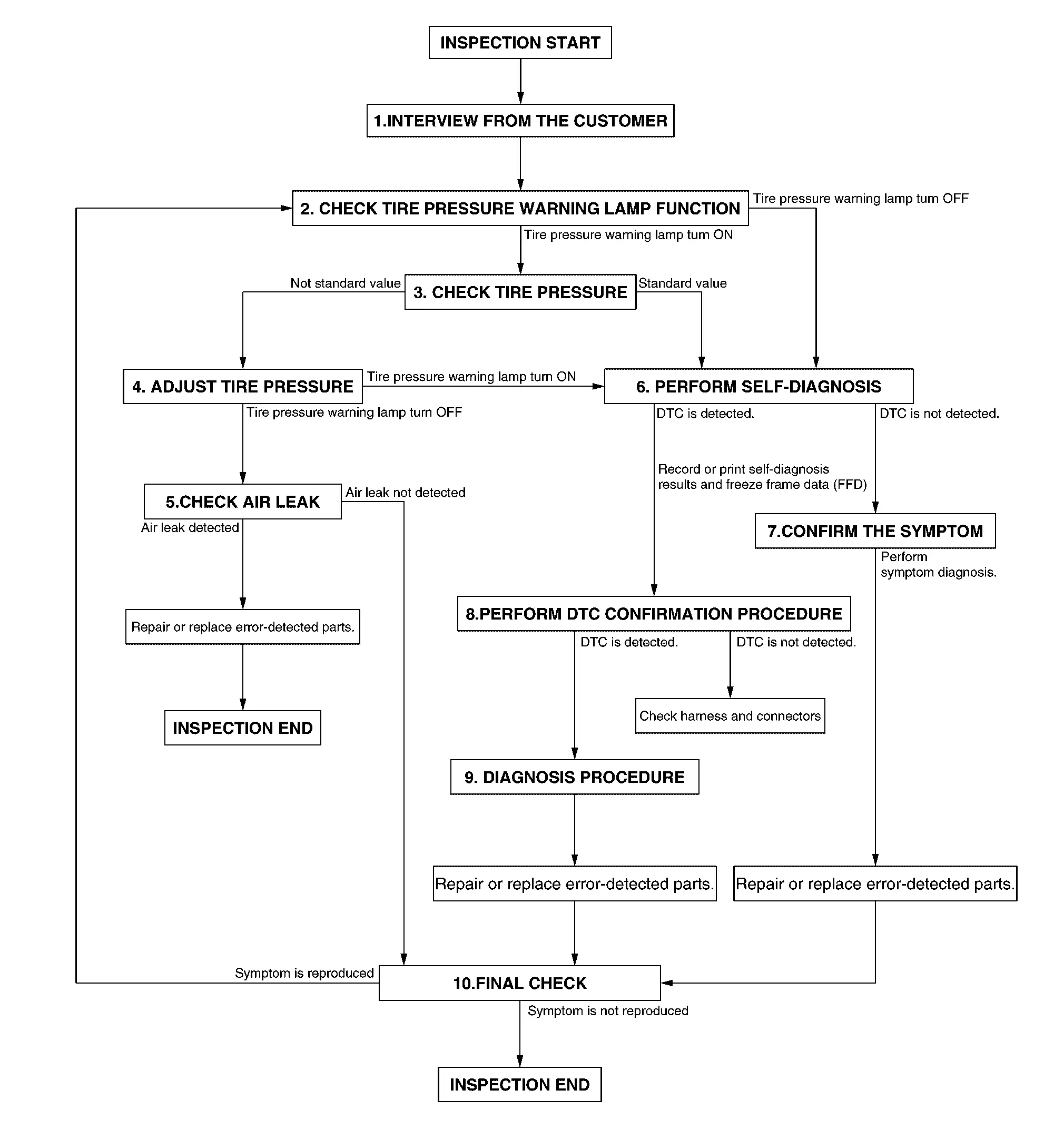

OVERALL SEQUENCE
DETAILED FLOW
INTERVIEW FROM THE CUSTOMER
Clarify customer complaints before inspection. To do so, reproduce the symptom before hand and fully understand it. Then interview the customer thoroughly. Check the symptoms by driving vehicle with the customer, if necessary.
CAUTION:
>>GO TO 2.
CHECK TIRE PRESSURE WARNING LAMP FUNCTION
Check that tire pressure warning lamp in combination meter.
Tire pressure warning lamp turn ON?
YES>>GO TO 3.
NO>>GO TO 6.
CHECK TIRE PRESSURE
Check the tire pressure of all wheels. Refer to TIRE AIR PRESSURE : Service Data.
NOTE:
Check the tire pressure of cold condition.
Is the inspection standard value?
YES>>GO TO 6.
NO>>GO TO 4.
ADJUST TIRE PRESSURE
Check and adjust the tire pressure for all wheels specified to the value. Refer to TIRE AIR PRESSURE : Service Data.
Drive the vehicle at 25 km/h (16 MPH) or more reaches 10 minuets in total.
Tire pressure warning lamp turn OFF?
YES>>GO TO 5.
NO>>GO TO 6.
CHECK AIR LEAK
Using soapsuds etc., check air leak.
NOTE:
Check air valve.
Is air leak detected?
YES>>Repair or replace error-detected parts. Replace the valve. Perform tire pressure sensor ID registration. Refer to Description.
NO>>INSPECTION END
PERFORM SELF-DIAGNOSIS
With CONSULT
Perform self-diagnosis for "AIR PRESSURE MONITOR” of “BCM”.
Is DTC detected?
YES>>Record or print self-diagnosis results and freeze frame data (FFD). GO TO 8.
NO>>GO TO 7.
CONFIRM THE SYMPTOM
Perform symptom diagnosis. Refer to Symptom Table.
>>Repair or replace error-detected parts. GO TO 10.
PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
Perform DTC confirmation procedures for the detected DTC, and then check that DTC is detected again.
Is DTC detected?
YES>>GO TO 9.
NO>>DIAGNOSIS PROCEDURE
Perform DTC Diagnosis Procedure.
>>Repair or replace error-detected parts. GO TO 10 .
FINAL CHECK
Is the symptom reproduced?
YES>>GO TO 2.
NO>>INSTPECTION END
