Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove cowl top side seal between cowl top cover and fender drip cover. Refer to Removal and Installation.

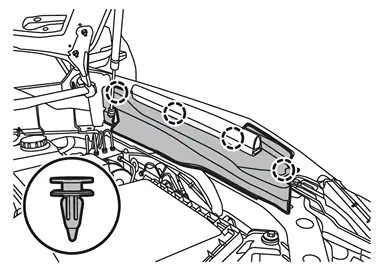

Disengage fixing clips, and then remove front fender drip cover.
 | : Clip |
Disengage fixing clips, and then remove hood side seal.
INSTALLATION
Install in the reverse order of removal.
