Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Never damage rear door glass and rear door panel.
Remove rear door glass run. Refer to Removal and Installation.
Remove rear door lower sash upper and rear door lower sash lower. Refer to Removal and Installation.

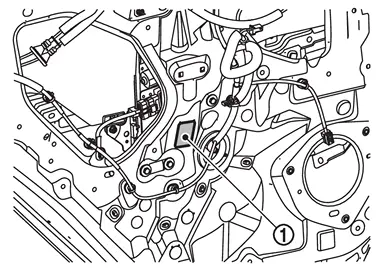

Remove hole seal 1
from rear door panel.
Reconnect power window switch connector with rear door finisher.
NOTE:
The rear door finisher is big and heavy component. When reconnect it, use the chair/similar something (A) to support rear door finisher as shown in the figure.

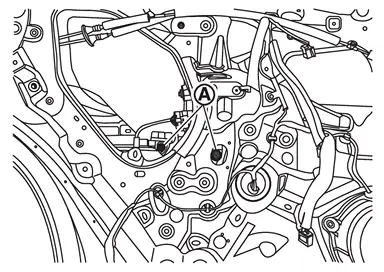

Operate power window switch to raise or lower rear door glass until rear door glass mounting bolts
can be seen, and then remove rear door glass mounting bolts.
Pull up rear door glass to upward, and then remove rear door glass.
CAUTION:
Never damage rear door glass and rear door panel.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Tighten rear door glass mounting bolts to the specified torque. Refer to Exploded View.
- Never reuse hole seal. Always replace it with a now one when it is removed.
After installing rear door glass, perform inspection and adjustment. Refer to Inspection and Adjustment.
Rear Door Glass
...
Inspection and Adjustment
SYSTEM INITIALIZATION
Perform additional service for operating the power window control system normally after installing rear door glass. Refer to Work Procedure.
FITTING INSPECTION
Check that the gl ...
