Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove emblem from the panel while warming using an industrial dryer.
CAUTION:
Never damage the painted surface of the panel when removing.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Never reuse the emblem which was peeled.
Degrease the panel emblem mount.
If paint bumps, dust, etc., adhere to the emblem mounting surface, it may cause a defective appearance.
NOTE:

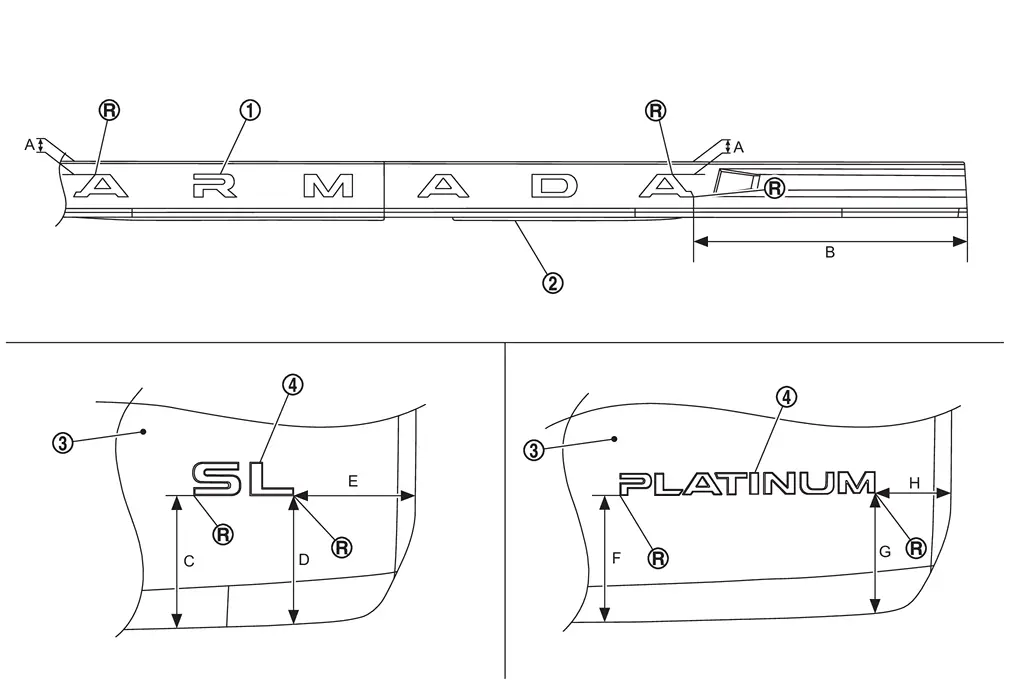

Refer to the figure below for the emblem B and emblem C mounting position.
 | Emblem B |  | Back door finisher |  | Back door panel |
 | Emblem C | ||||
 | : R end | ||||
| A | : 13.0 mm (0.512 in) | B | : 365.4 mm (14.386 in) | C | : 122.1 mm (4.807 in) |
| D | : 119.1 mm (4.689 in) | E | : 120.1 mm (4.728 in) | F | : 121.9 mm (4.799 in) |
| G | : 116.1 mm (4.571 in) | H | : 79.7 mm (3.138 in) |
Exploded View
Emblem A Emblem B Emblem C ...
