Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Disconnect battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.
REMOVAL
Remove rear spoiler cover. Refer to Removal and Installation.

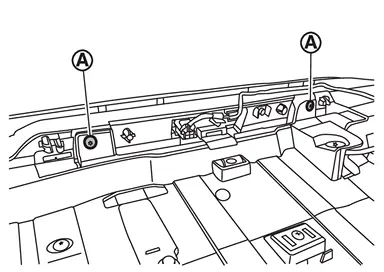

Remove high-mounted stop lamp fixing screws
.

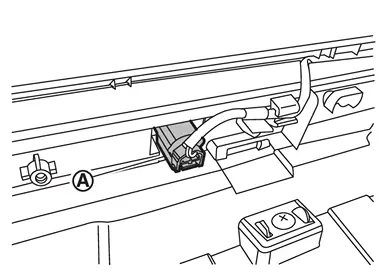

Disconnect high-mounted stop lamp harness connector .

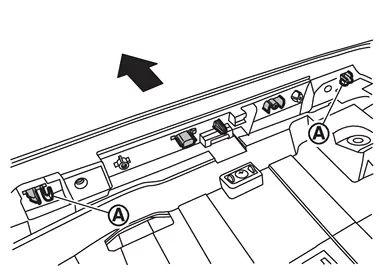

Disengage high-mounted stop lamp fixing pawls , and then remove high-mounted stop lamp.
INSTALLATION
Install in the reverse order of removal.
Exploded View
High-mounted stop lamp harness Rear spoiler High-mounted stop lamp : Pawl : N·m (kg-m, in-lb) ...
Replacement
CAUTION:
HIGH-MOUNTED STOP LAMP
CAUTION:
Replacement of a single part is not possible due to the adoption of LED. For replacement, replace high-mounted stop lamp as a set. Refer to Removal and Install ...
