Nissan Armada 2025-2026 Service and Repair Manual: Sagging

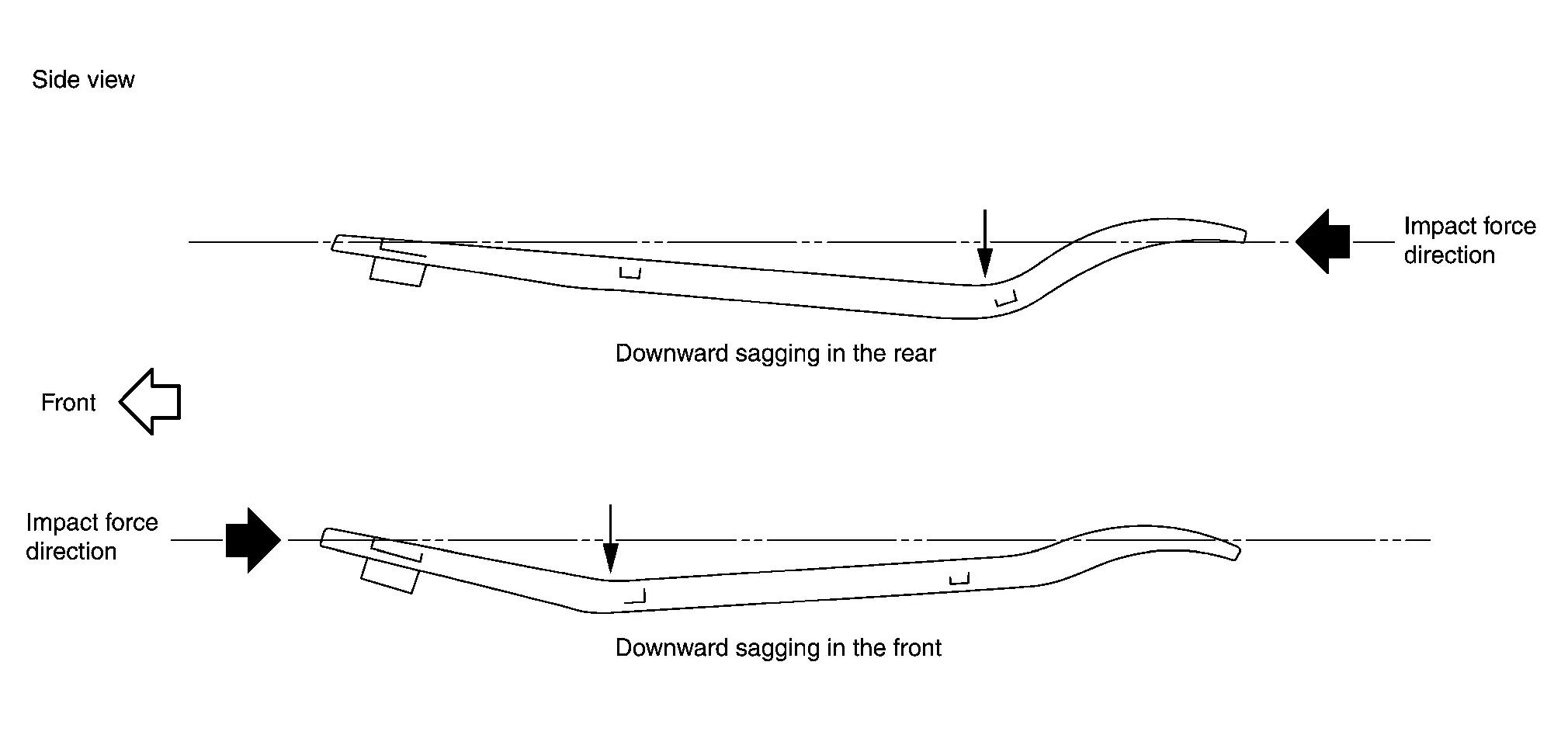

This refers to upward or downward bending of a side frame due to strong impact from the front or rear that occurs when the vehicle receives a rear-end collision or performs sudden braking with an excessive load. In the body alignment dimensions, the height dimensions and diagonal dimensions at each measurement point will be changed.
