Nissan Armada 2025-2026 Service and Repair Manual: Work Procedure (Group A)

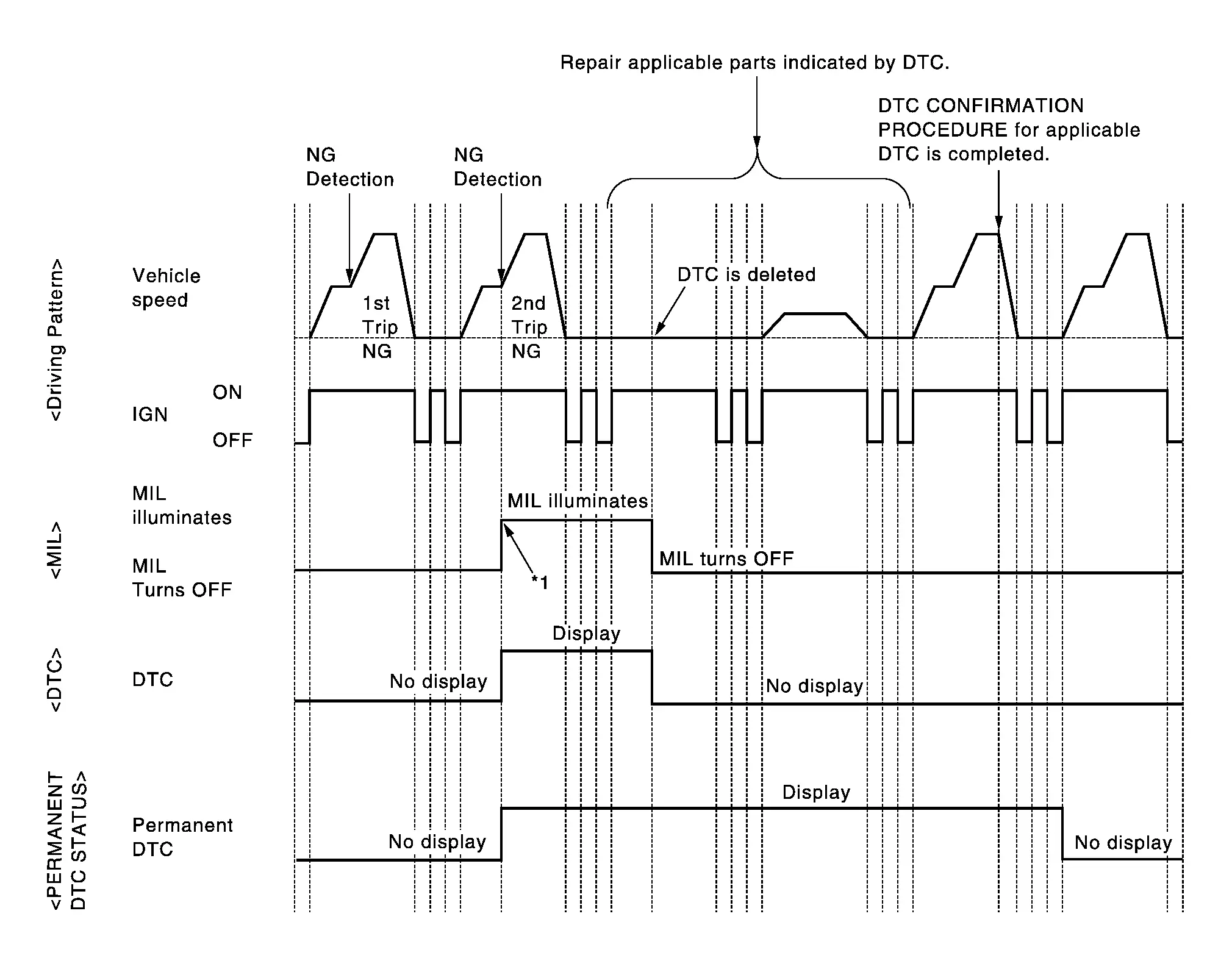

| *1: | When the same malfunction is detected in two consecutive trips, MIL will illuminate. |
CHECK DTC
Check DTC.
Is any DTC detected?
YES>>Repair malfunction(s) and erase DTC.
NO>>GO TO 2 .
CHECK PERMANENT DTC
With CONSULT
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
On CONSULT screen, select “SRT & P-DTC”>>“Permanent DTC Status”.
With GST
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Select Service $0A with GST.
Is any permanent DTC detected?
YES>>GO TO 3 .
NO>>END
PERFORM DTC CONFIRMATION PROCEDURE
Perform “DTC CONFIRMATION PROCEDURE” for DTCs which are the same as permanent DTCs stored in ECM. Refer to DTC Index.
>>GO TO 4 .
CHECK PERMANENT DTC
With CONSULT
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
On CONSULT screen, select “SRT & P-DTC”>>“Permanent DTC Status”.
With GST
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Select Service $0A with GST.
Is any permanent DTC detected?
YES>>GO TO 1 .
NO>>END
How to Erase Permanent Dtc
When a DTC is stored in ECM
When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL s ...
