Nissan Armada 2025-2026 Service and Repair Manual: Anchoring by Rigid Racks and Chains
Place the frame on rigid racks and pull the high strength/rigidity portions with chains. Thus, secure the frame tightly in the vertical direction. The rigid racks sustain the frame from below and the tensioned chains restrict any upward movement.

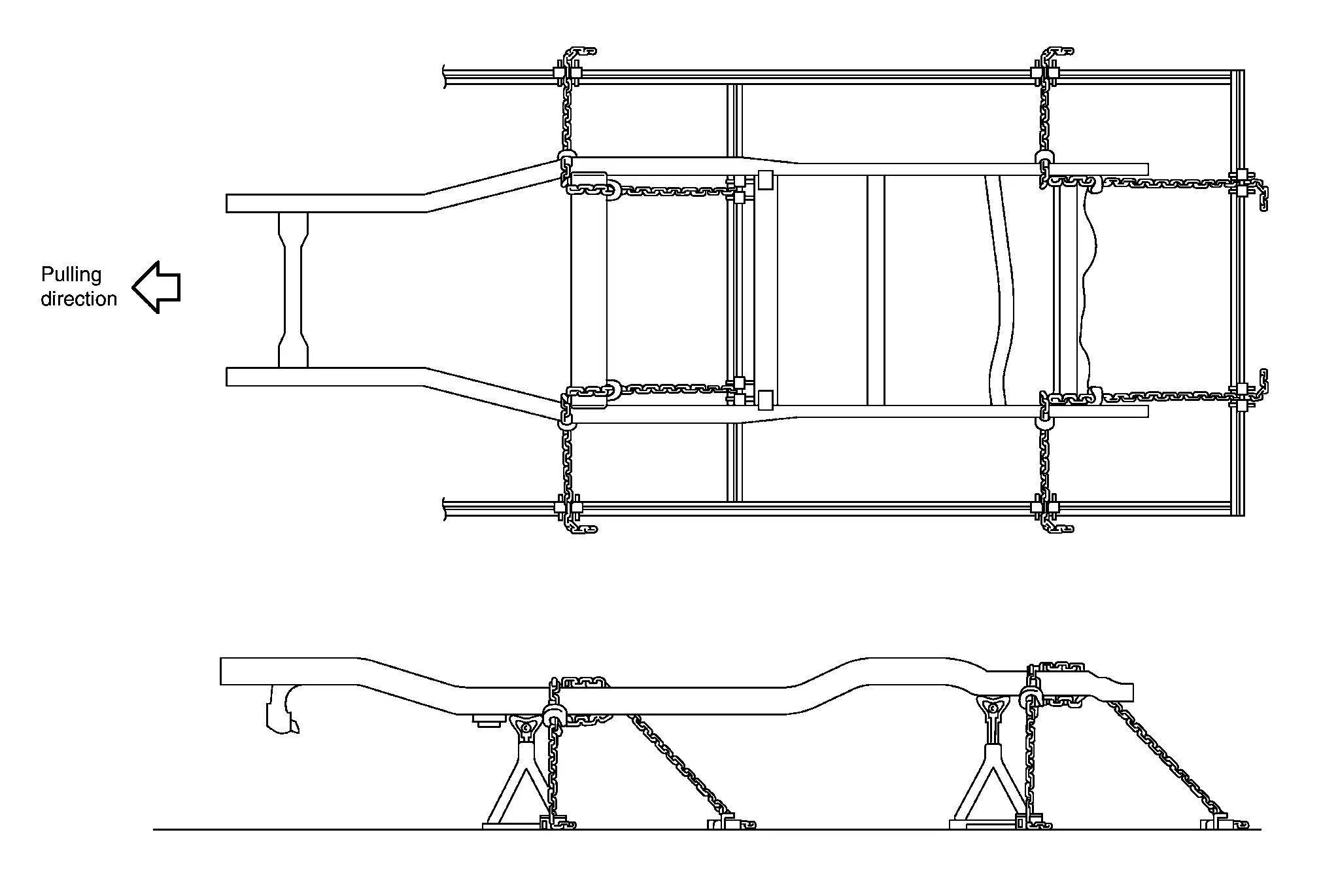

The figure shows a typical anchoring method.
This method allows easier anchoring of a frame. Therefore, the method is often used for slight frame deformation, in other words, when the required pulling force is relatively small. It is useful to perform short-time pulling with the cabin mounted on the frame. However, to transmit the pulling force efficiently and thus perform effective repair, another method is recommended. Remove the tires from the frame and sustain the frame with rigid racks from below.
Frame Securing
Frame repair work requires larger straightening force than uni-bodies. Therefore, the frame to be repaired must be anchored stably and securely to withstand such large force. The anchoring methods use ...
Anchoring with Frame Attachments
A difference between the frame anchoring and the uni-body anchoring is that the frame itself is held down. (For the basic anchoring methods for uni-bodies, refer to Securing the Vehicle.)
Frame straig ...
