Nissan Armada 2025-2026 Service and Repair Manual: Anchoring with Frame Attachments
A difference between the frame anchoring and the uni-body anchoring is that the frame itself is held down. (For the basic anchoring methods for uni-bodies, refer to Securing the Vehicle.)
Frame straightening equipment makers offer the attachments for frame anchoring including those intended for any vehicle model and those dedicated for particular vehicle models. Generally speaking, an attachment allows the clamp height/position/angle, etc. to be adjusted so that it can be aligned at any desirable position.
The attachments are largely divided into the following two types.

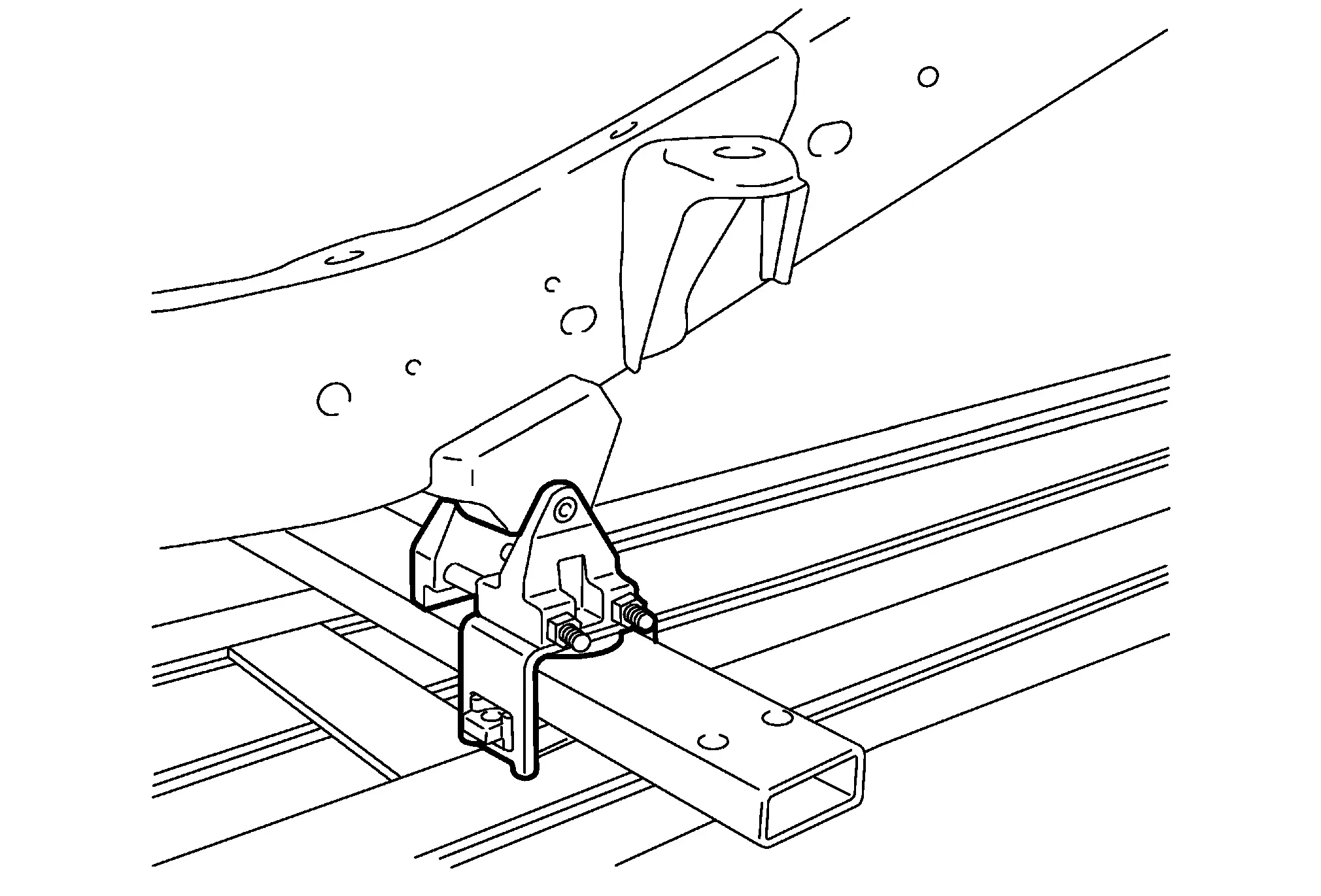

Side frame cramp type

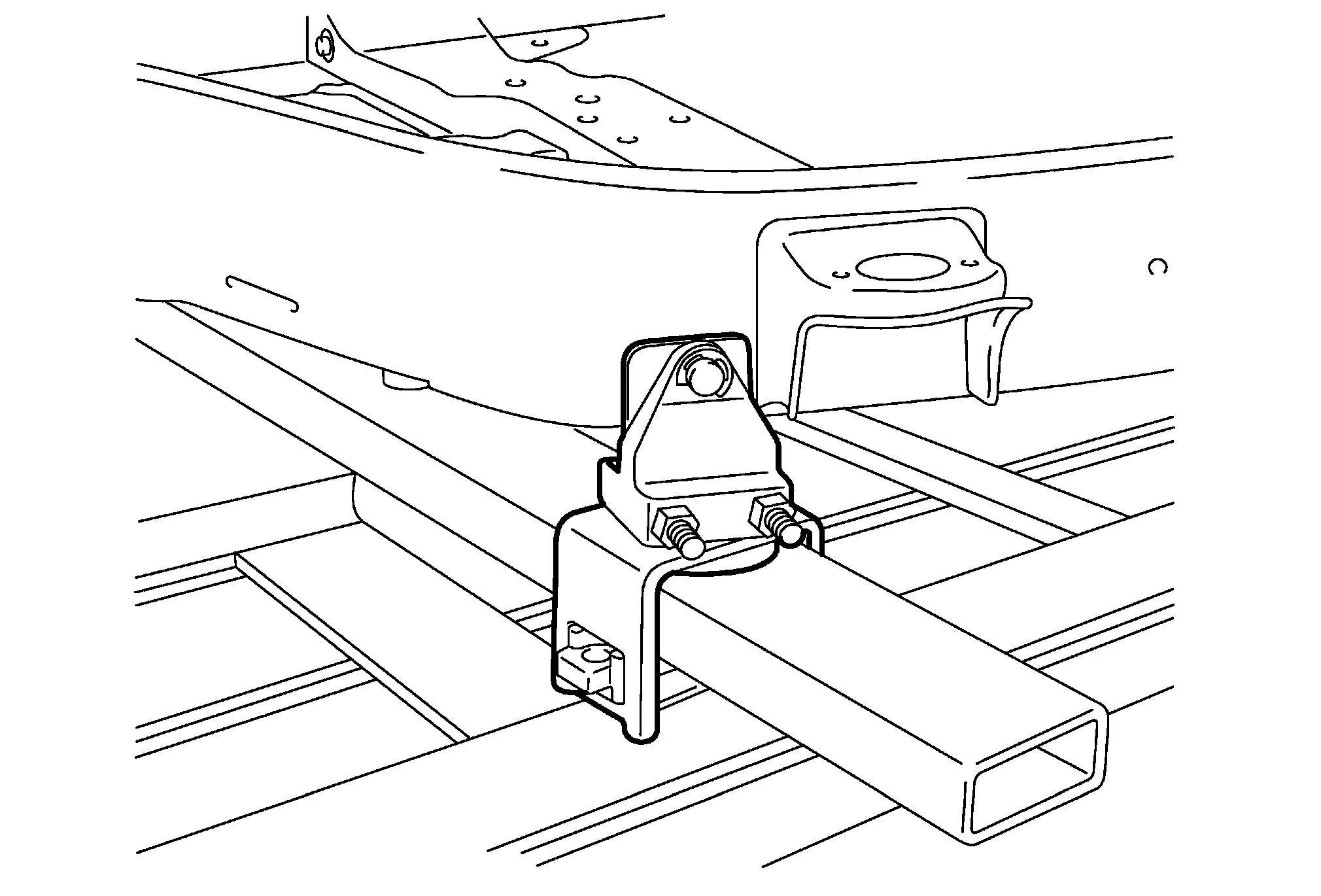

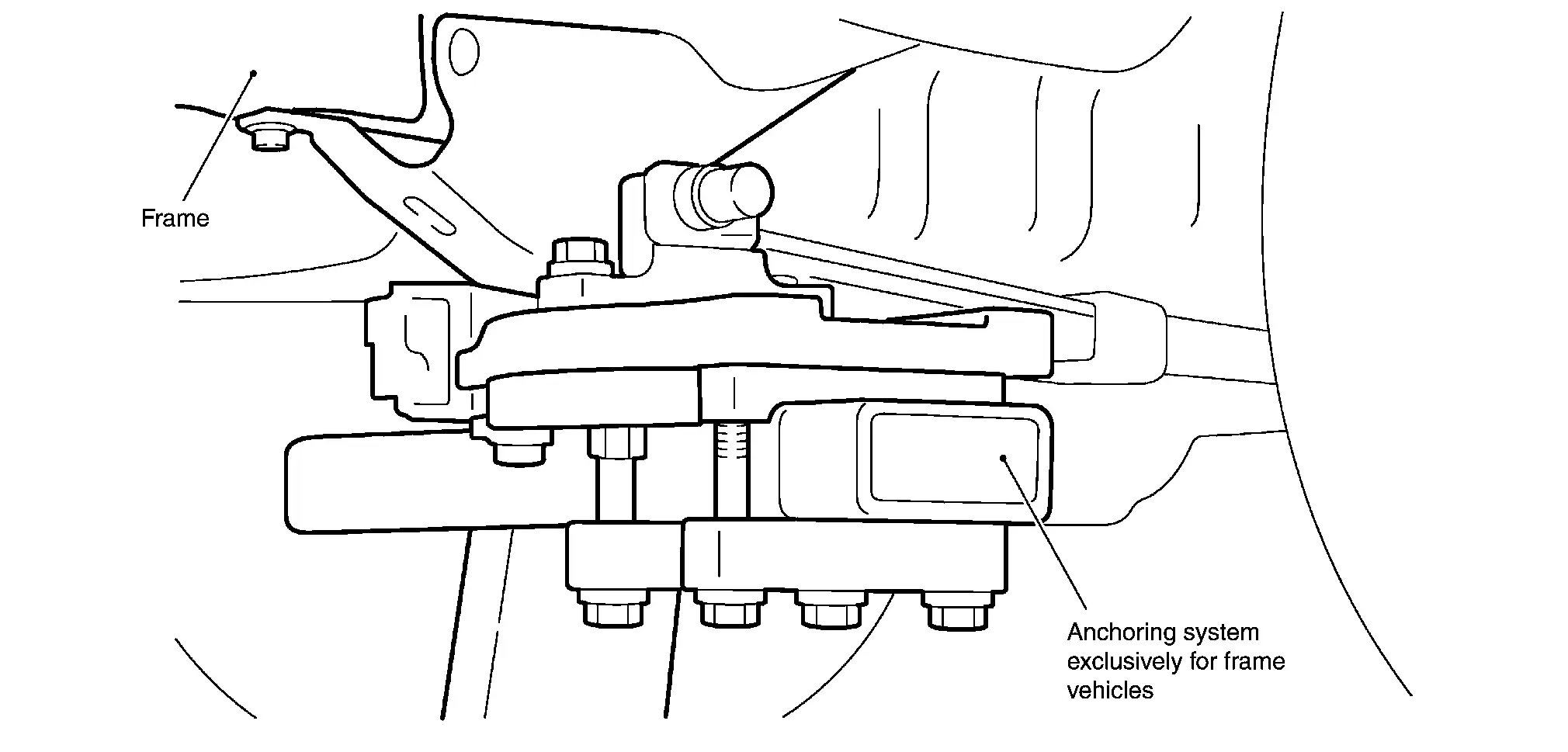

Suspension bracket cramp type
The use of attachments with jig type straightening equipment allows accurate positioning of suspension components, which are considered difficult to repair.
However, you should not completely rely on anchoring with attachments. Supplemental anchoring with chains and belts should also be used as necessary according to the required straightening.
Anchoring by Rigid Racks and Chains
Place the frame on rigid racks and pull the high strength/rigidity portions with chains. Thus, secure the frame tightly in the vertical direction. The rigid racks sustain the frame from below and the ...
