Nissan Armada 2025-2026 Service and Repair Manual: Measurement with Three-dimensional Measuring Equipment
Measure the dimensions using three-dimensional measuring equipment and compare the measurements with the vehicle body alignment dimensions to identify any deformation in each direction. Several types of equipment are available, such as universal jig type, universal measuring type, laser type, computer measuring type and ultrasonic type.
JIG TYPE
When jig type straightening equipment is used, the jig side gauge and pins are used as the dimensional references.
Three axis directions, ″X″ (width), ″Y″ (length), and ″Z″ (height) can be measured simultaneously.
The equipment also allows the worker to utilize any measuring point for the anchoring jig as soon as it is given reference dimensions. Therefore, even a novice can perform body repair with a high level of body alignment precision.

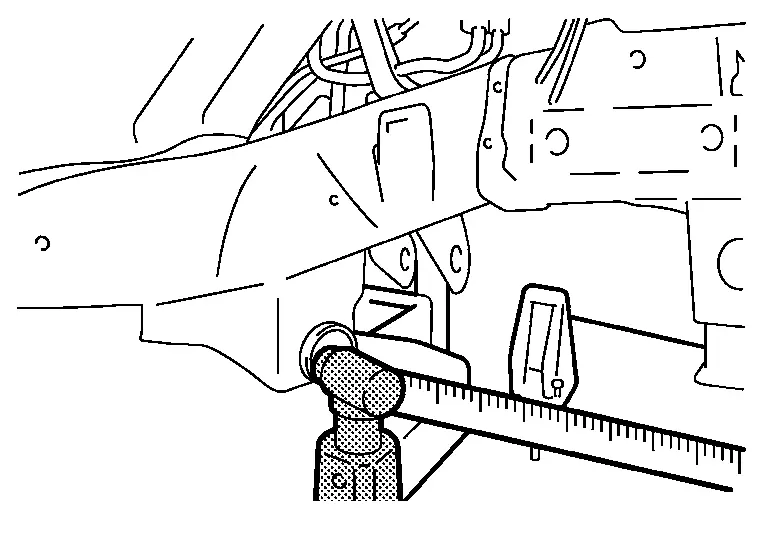

Example 1: Measurement before repair

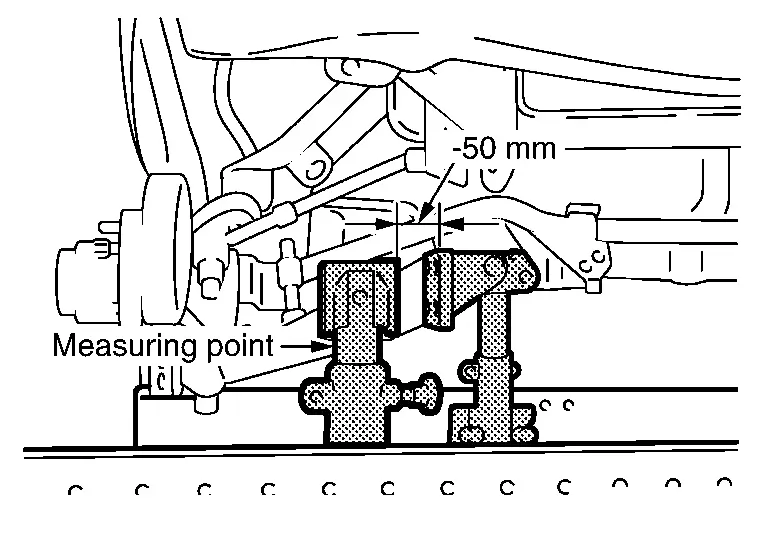

Example 2: Measurement before repair

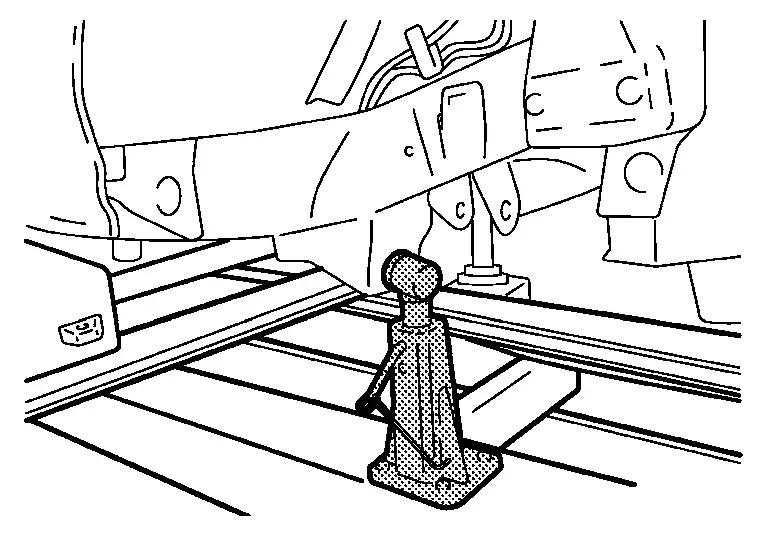

Example 3: Measurement after repair
Measurement with Manual Gauges
(1) MEASUREMENT WITH TRACKING GAUGES
Three types of deformations, side-sway, diamond and buckling, can be measured.
(a) Side-sway
This is checked by measuring the dimensions of the respective crossm ...
Frame Securing
Frame repair work requires larger straightening force than uni-bodies. Therefore, the frame to be repaired must be anchored stably and securely to withstand such large force. The anchoring methods use ...
