Nissan Armada 2025-2026 Service and Repair Manual: Hammering

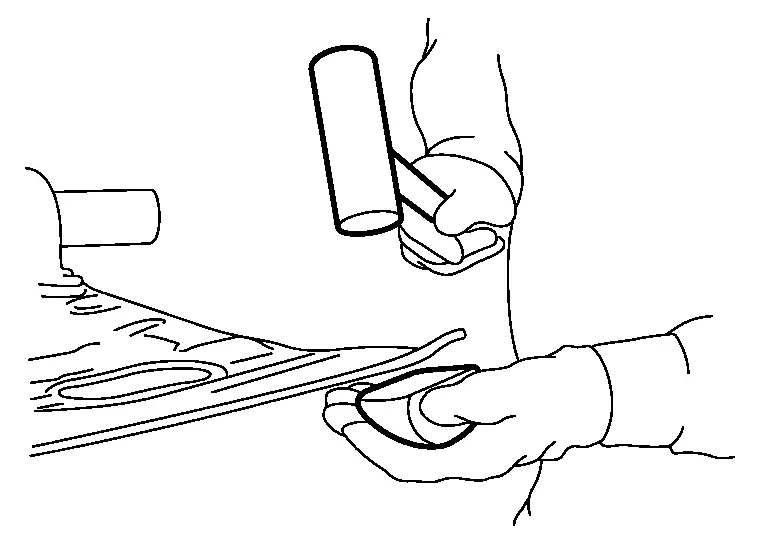

Elongation of aluminum alloy during hammering will be greater than with steel plates. Therefore, a wooden or plastic hammer should be used with a softer blow to prevent stretching and work hardening of panels. Observe the following in case body filler is applied after hammering.
Apply wash primer and let it dry for 1 hour at 20°C (68°F) before applying body filler.
Use putty that can be used for aluminum panels. Do not perform forced drying because the coefficient of linear expansion is twice as much as that of sheet steel.
Sanding
Aluminum alloy panels are softer than steel plates. It is important to select the proper type and grade of sanding disc. Also, care must be taken not to overgrind the surface.
Because aluminum powder ...
Heating Repair
While hammering work is being performed during the rough repair stage, the area needs to be heated. First, cover your hand with a glove (cloth material), and then place hand on the reverse side of the ...
