Nissan Armada 2025-2026 Owner's Manual: How to enable/disable the RCTA system

Nissan Armada 2025-2026 Owner's Manual / Starting and driving / Rear Cross Traffic Alert (RCTA) / How to enable/disable the RCTA system

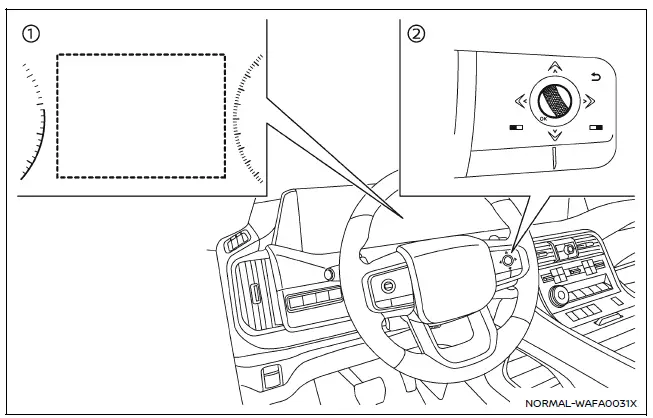

Nissan Armada RCTA system settings screen

Vehicle information display
Steering-wheel-mounted controls (right side)

Follow these steps to activate or deactivate the Nissan Armada RCTA system:

1. Press the Nissan Armada steering wheel settings button button until the "Settings" menu appears in the vehicle information display, then confirm using the scroll dial.

Select "Driver Assistance" using the scroll dial, and press to confirm.

2. Navigate to "Parking Assist", then select "Rear Cross Traffic Alert", and confirm your selection.

3. Use the scroll dial to turn the Nissan Armada RCTA system ON or OFF as desired.

NOTE:

The Nissan Armada will retain the selected RCTA settings even after the engine is restarted, ensuring consistent operation.

RCTA system limitations

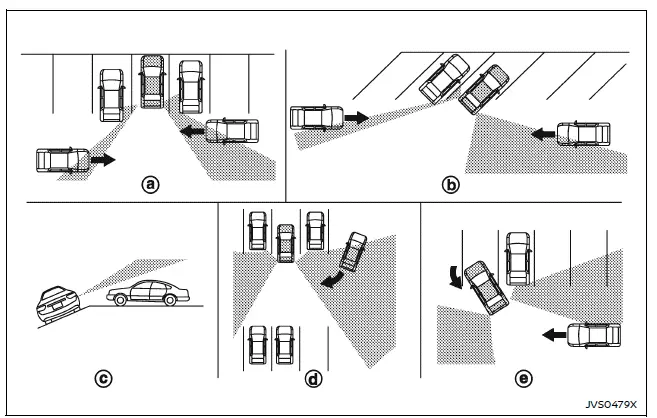

Nissan Armada RCTA limitation scenarios diagram

WARNING

The following limitations apply to the Nissan Armada RCTA system. Failure to recognize these limitations may result in serious injury or fatal accidents.

Always visually confirm the area behind and around your Nissan Armada before reversing. The radar sensors detect moving vehicles only and cannot identify all obstacles such as:
- Pedestrians, cyclists, animals, or small objects
- Vehicles traveling faster than approximately 19 MPH (30 km/h)
- Vehicles moving slower than approximately 5 MPH (8 km/h)
The Nissan Armada radar sensors may fail to detect vehicles in certain conditions, including:
- When nearby parked vehicles block radar signals (Illustration a)
- When parked at an angle (Illustration b)
- When parked on a slope or uneven terrain (Illustration c)
- When an approaching vehicle turns into the lane behind you (Illustration d)
- When the angle between your Nissan Armada and the approaching vehicle is minimal (Illustration e)
Detection capability may be reduced in adverse conditions such as:
- Heavy rain, snow, or fog
- Water spray from the road
- Accumulation of ice, frost, or dirt on the vehicle
Avoid placing stickers, transparent films, accessories, or additional paint near the radar sensors on your Nissan Armada.
Such modifications may interfere with proper detection and system performance.
High noise levels (such as loud audio systems or open windows) may prevent the driver from hearing the warning chime.

Nissan Armada RCTA illustration multiple vehicles
Illustration 1

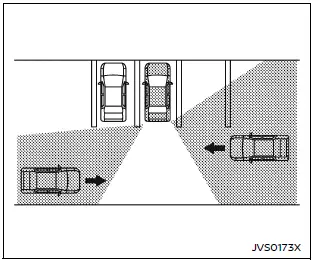

Nissan Armada RCTA illustration opposite direction vehicles
Illustration 2

NOTE:

In scenarios where multiple vehicles approach in sequence (Illustration 1) or from opposing directions (Illustration 2), the Nissan Armada RCTA system may not emit additional warning chimes after the first detected vehicle passes the sensors.

The Nissan Armada RCTA system significantly enhances reversing safety, but it should always be used as a support system in combination with careful driver attention and awareness. :contentReference[oaicite:0]{index=0}
