Nissan Armada 2025-2026 Service and Repair Manual: Measurement with Manual Gauges
(1) MEASUREMENT WITH TRACKING GAUGES
Three types of deformations, side-sway, diamond and buckling, can be measured.
(a) Side-sway

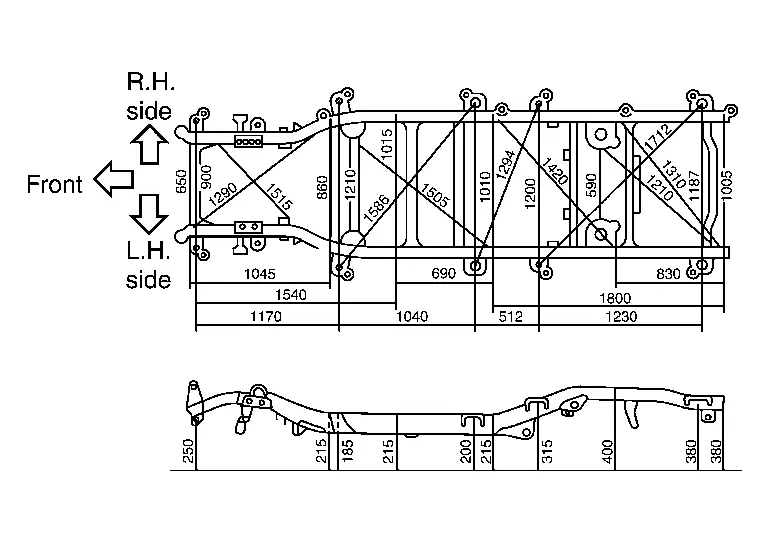

This is checked by measuring the dimensions of the respective crossmember diagonal lines and comparing them to see if any differences are present.
(b) Diamond
Measure the dimensions of the respective crossmember diagonal lines. If any gap is present in the length, a diamond deformation is present.
(c) Buckling
This is checked by measuring the height dimensions and length dimensions according to the vehicle body alignment section in the Service Manual or the Body Repair Manual.

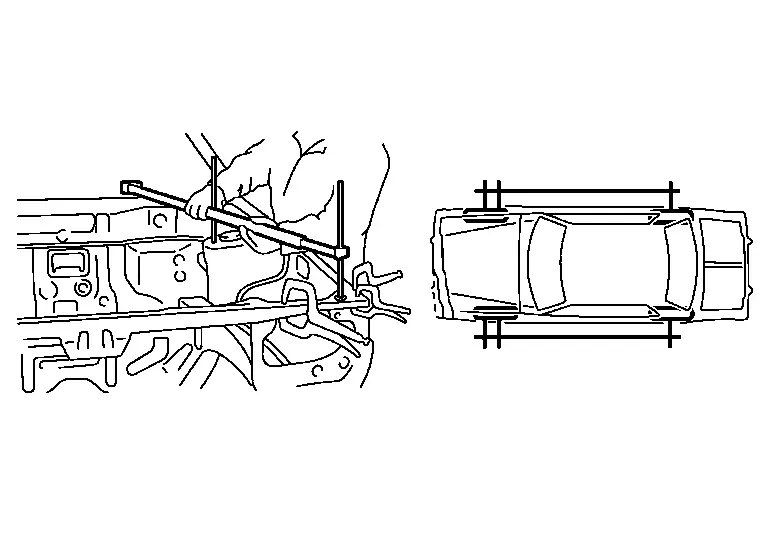

(2) MEASUREMENT WITH CENTERING GAUGES
Four types of deformations, sagging, side-sway, twisting, and diamond, can be measured.
(a) Sagging
This is checked by looking through the horizontal bars of centering gauges.
(b) Side-sway
This is checked by looking through the center pins of centering gauges attached on the frame.
(c) Twisting
Twisting can be checked by judging whether the horizontal bar of a centering gauge attached on the frame is inclined.
(d) Diamond
Diamond deformation can be checked by identifying any displacement of the side pin of a diamond attachment attached to the center of a centering gauge on the frame or to the horizontal bar located nearby.
Frame Deformation Measuring Method
There are several methods available for measuring frame deformations, which must be selected appropriately according to the type of the straightening equipment in use, anchoring method, workshop equip ...
Measurement with Three-dimensional Measuring Equipment
Measure the dimensions using three-dimensional measuring equipment and compare the measurements with the vehicle body alignment dimensions to identify any deformation in each direction. Several types ...
