Nissan Armada 2025-2026 Service and Repair Manual: Removal of Rust Limited to the Skin Panel Surface

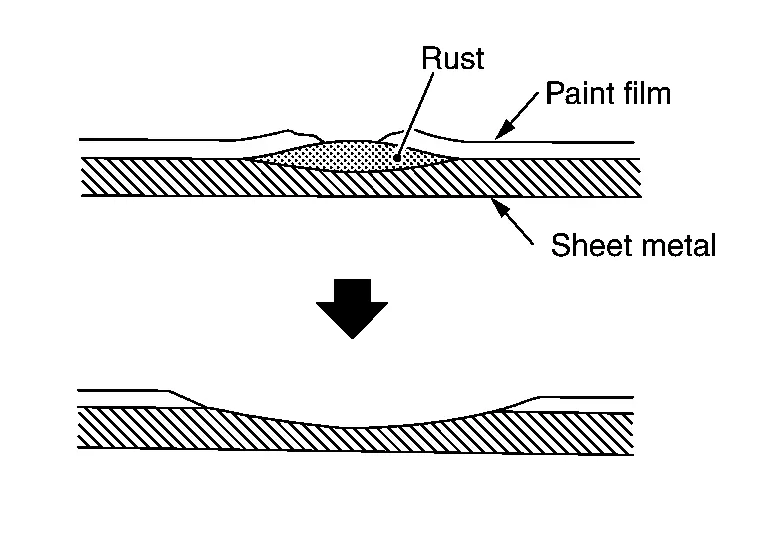

Grind the rusted portion with an air sander or the like.
Rust may be more extensive than it appears from the outside. Therefore, it is necessary to grind the area around rusted portion. Repair the ground out portion using body filler.
