Nissan Armada 2025-2026 Owner's Manual: Cockpit

Nissan Armada 2025-2026 Owner's Manual / Illustrated table of contents / Cockpit

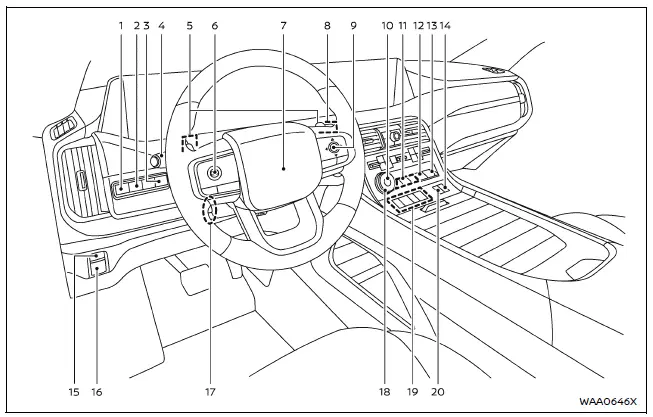

Nissan Armada cockpit layout with steering controls and driver assistance switches
Example

The cockpit of the Nissan Armada is engineered to provide maximum control, comfort, and advanced driver assistance integration. Every switch and control element is strategically positioned to ensure intuitive access, allowing the driver of the Nissan Armada to stay focused on the road while benefiting from modern technology and ergonomic design.

  1. Steering Assist switch
  2. Head Up Display (HUD) switch*
  3. Power liftgate switch*
  4. Headlight and turn signal switch
    Fog light switch*
  5. Paddle shifters
  6. Steering-wheel-mounted controls (left side)
    • ProPILOT Assist switch
    • Volume control**
  7. Steering wheel
    • Horn
  8. Wiper and washer switch
  9. Steering-wheel-mounted controls (right side)
    • Vehicle information display control
    • Touch screen display control**
    • Audio control**
    • Bluetooth Hands-Free Phone System switches**
    • Voice Recognition system switch**
  10. Hill descent control switch*
  11. 4WD shift switch*
  12. Differential lock mode switch*
  13. Vehicle Dynamic Control (VDC) OFF switch
  14. Idling Stop OFF switch
  15. Automatic brake hold switch
  16. Parking brake switch
  17. Tilt and telescopic steering wheel control*
    Tilt and telescopic steering lock lever*
  18. Drive mode selector*
  19. Shift buttons
  20. Air suspension AUTO switch*

*: if so equipped
**: Refer to the separate NissanConnect Owner's Manual (if so equipped).
